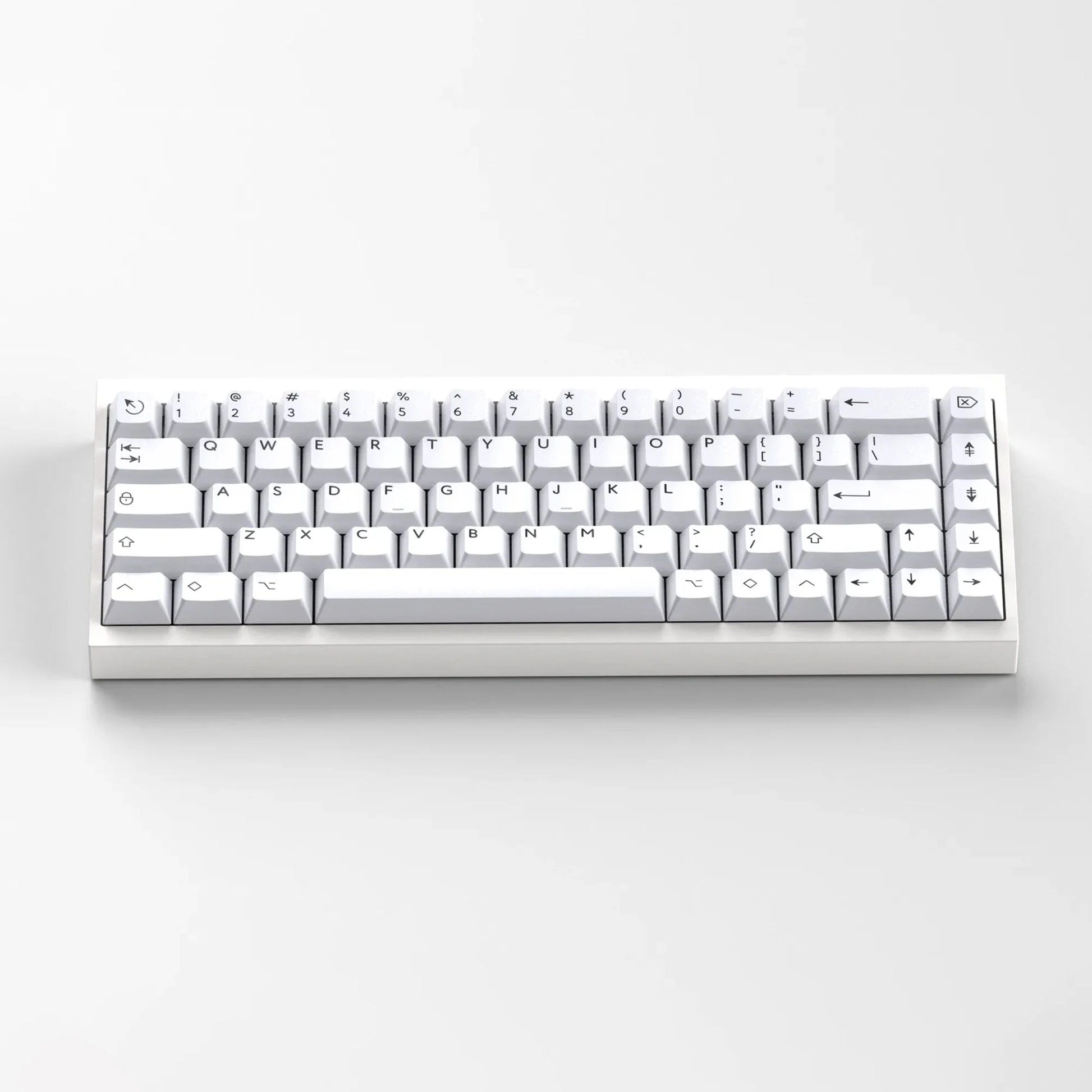

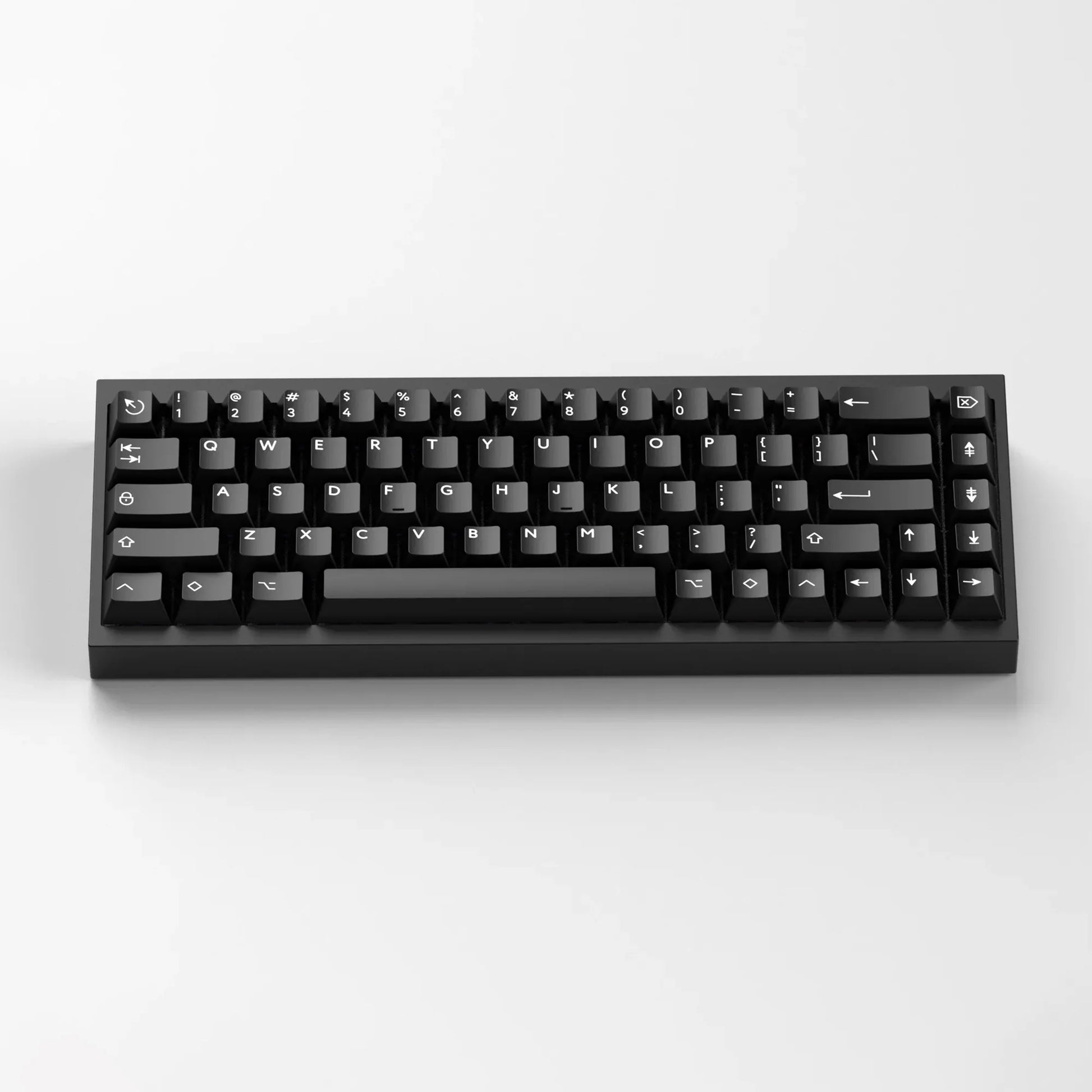

KBDFANS TOFU65 2.0 Mechanical Keyboard Kit

Regular price $280.00 SGD
Regular price Sale price $280.00 SGD
Sale Sold out
Shipping calculated at checkout.
Variation

Colors and configuration:

Offered only with Polycarbonate plate



Mounting Styles:

Top Mount

Silicon Bowl Gasket

Silicone Socks Gasket

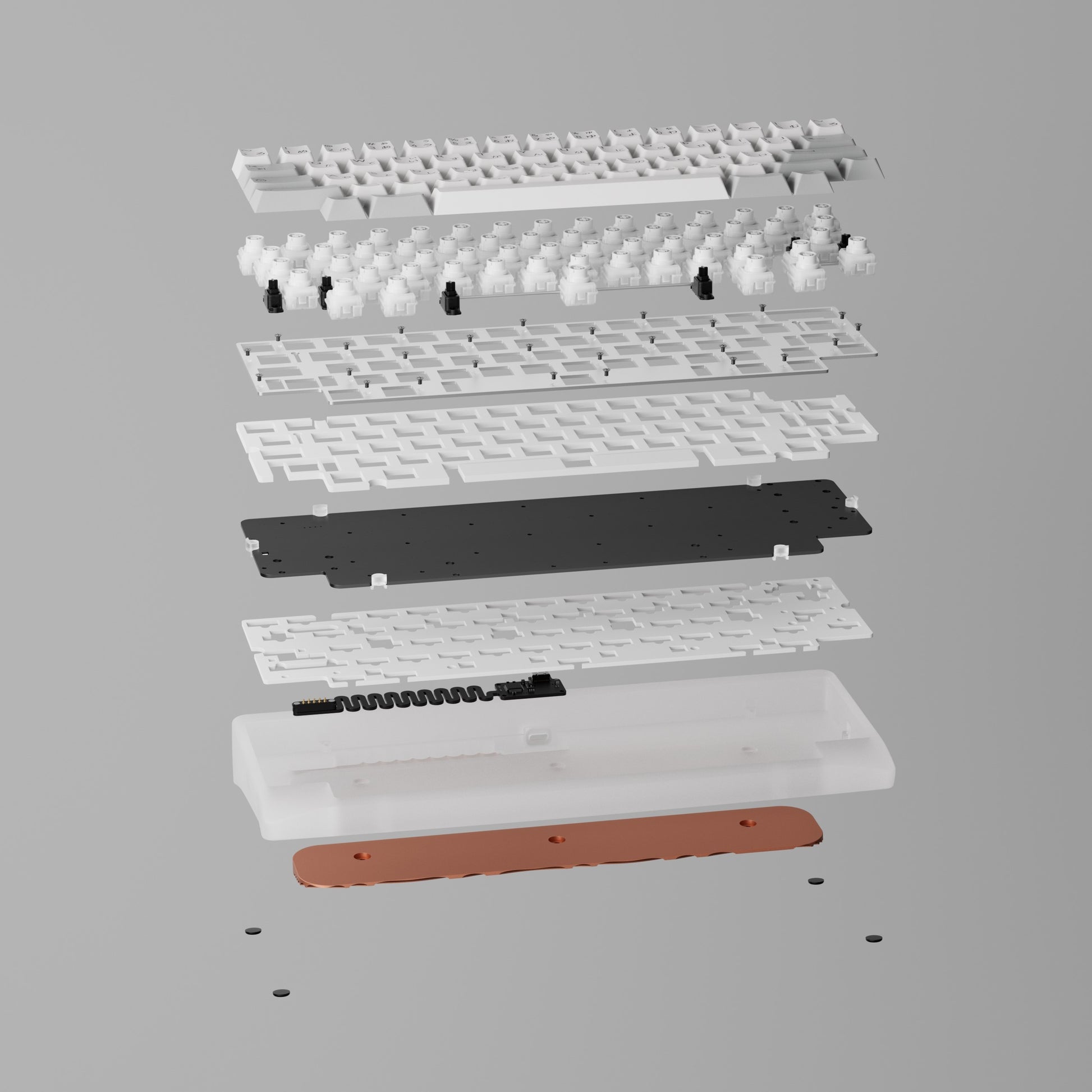

Exploded View





Specifications
Aluminum case (anodized and electrostatically coated)

  • PC/ Aluminum/ Fiberglass/ Carbon fiber plate
  • Hot-swappable PCB, supports per-key RGB, QMK firmware, VIA support
  • Brass weight (transparent E-coating after sandblasting)
  • Top mount, silicone socks, silicone bowl, 3 types of structural support
  • Flex cut PCB, thickness 1.2 mm
  • USB-C daughterboard support
  • ≈1.7 kg before assembly
  • Length: 313.7 mm, width: 115.7 mm, front: 18.5 mm, back: 32.5 mm, typing angle: 7°
  • Design by KBDfans

Includes

  • Aluminum top and bottom case x1
  • Brass weight x1
  • Plate x1
  • Hot-swappable PCB x1
  • USB-C daughterboard x1
  • Silicone bowl x1 set
  • Silicone socks x1 set
  • Bottom poron x1
  • Plate poron x1
  • EVA switch pad x1
  • Cherry screw-in stabilizers x1 set
  • Screws and rubber feet x1 set



Estimated shipping date

  • Currently in shipment from KBDFans, est end May

Layout



Building tutorial

Firmware

Disclaimer

About the case:

  1. Keyboard case - If you see any resemblance of marks or foreign material under 2 mm (tool marks, stain, dent, sand mark, scratch, etc.), you're not eligible for Return & Refund.
  2. Brass weight - If you see any resemblance of marks or foreign material under 2 mm (tool marks, stain, dent, sand mark, scratch, etc.), you're not eligible for Return & Refund.
  3. Case interior - Based on the production method of anodizing and spraying, the product can lead to some smearing at the surface level, and you'll see some hook marks within the case. Also, the spraying process can not guarantee that the color will look 100% the same on the internal case corners. The color off on the interior case and the interior corners are not eligible for Return & Refund.
  4. About the potential coating defects: Because the Faraday cage exists for this type of production method, it's going to be hard to coat the Interior corners perfectly. Insead of kill all the smoothness on the case coating, the interior painting job won't be as perfect as the exterior's.

Attention:
-Make sure to QC your keyboard case and weight before building it. For any issues besides the three above, please get in touch with our customer support agents to get help.
-For anything built is not eligible for Return & Refund.


QC Standards: Click for more
