IN THE BOX
Nuphy

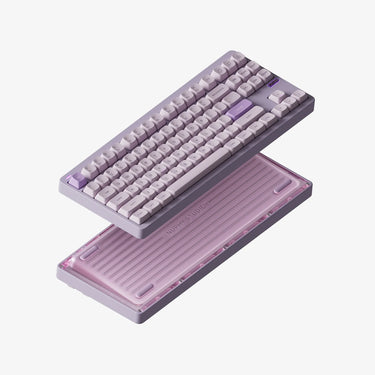

Nuphy GEM80 Barebones Keyboard Kit
$250.00 SGD
/
Shipping calculated at checkout.
Disclaimer:
The keyboard DOES NOT come with keycaps.
You will have to purchase a keycap set to match your keyboard.
A uncustomary custom keyboard
A custom keyboard, and much more than one. Gem80 packs the wireless performance of a gaming keyboard, a refined thocky sound signature, and an abundance of part choices into its splendidly polished aluminum chassis, with lots of fun.
KEYBOARD KIT
* Keycaps and switches are not included.
SWITCH SET
90 x Switches
KEYCAP SET - Does not come with a Base Set Order
137 x Keycaps
VIDEO GUIDE
BUILD GUIDE
MOUNT REPLACEMENT GUIDE
TECH SPECS
SPECIFICATION
Layout: ANSI 80%/TKL
Number of Keys: 88
Switch Type: Normal-profile
Stabilizer Type: Plate Mounted
Mount Type: Gasket & Top
Hot-swappable Support: Yes (3/5 pin MX-style)
N-key Rollover Support: Yes
N-key Rollover Support: Yes
Backlight: South-facing RGB-LED
Backlight Modes: 40+
Compatible System: macOS/Windows/Linux/Android/iOS
Operating Environment: -10 to 50℃
MCU: ARM STM32F072
RF: NRF52810 (tri-mode)
CONNECTION
Wired Polling Rate: 1000Hz
2.4GHz Polling Rate: 1000Hz (tri-mode)
Bluetooth 5.0 Polling Rate: 125Hz (tri-mode)
MATERIALS
Top Case: Aluminum
Bottom Case: PC
Plate Material: Fr4
SIZE AND WEIGHT
Long 141.3 mm (5.56 inches)
Wide 358.1 mm (14.10 inches)
Back Height 36.7 mm (1.44 inches)
Front Height 21.5 mm (0.85 inch)
Weight 1120 grams (2.47 pound)
Type Angle 6º
Wide 358.1 mm (14.10 inches)
Back Height 36.7 mm (1.44 inches)
Front Height 21.5 mm (0.85 inch)
Weight 1120 grams (2.47 pound)
Type Angle 6º
POWER AND BATTERY (TRI-MODE)
Battery Capacity: 4000mAh
Working Time (all lights on): 24~45 hours (lab test result)
Working Time (homing bars only): 34~70 hours (lab test result)
Working Time (all lights off): Up to 330 hours (lab test result)
Working Time (all lights off): Up to 330 hours (lab test result)
* Note: 1. Due to technical limitations, renderings of keyboards published by NuPhy are not accurate representations of the final products. 2. Both the Gem80 Wired-only and Tri-mode keyboard kits do not include switches and keycaps by default. 3. PCBs built for the Tri-mode version cannot be used/installed on the Wired-only keyboard, due to differences in the dimensions of their bottom cases and silicone mods. 4. On account of the unique nature of the custom keyboard, replacements for parts are usually provided on a standalone basis in the events of damages/dysfunctions covered by the warranty.
