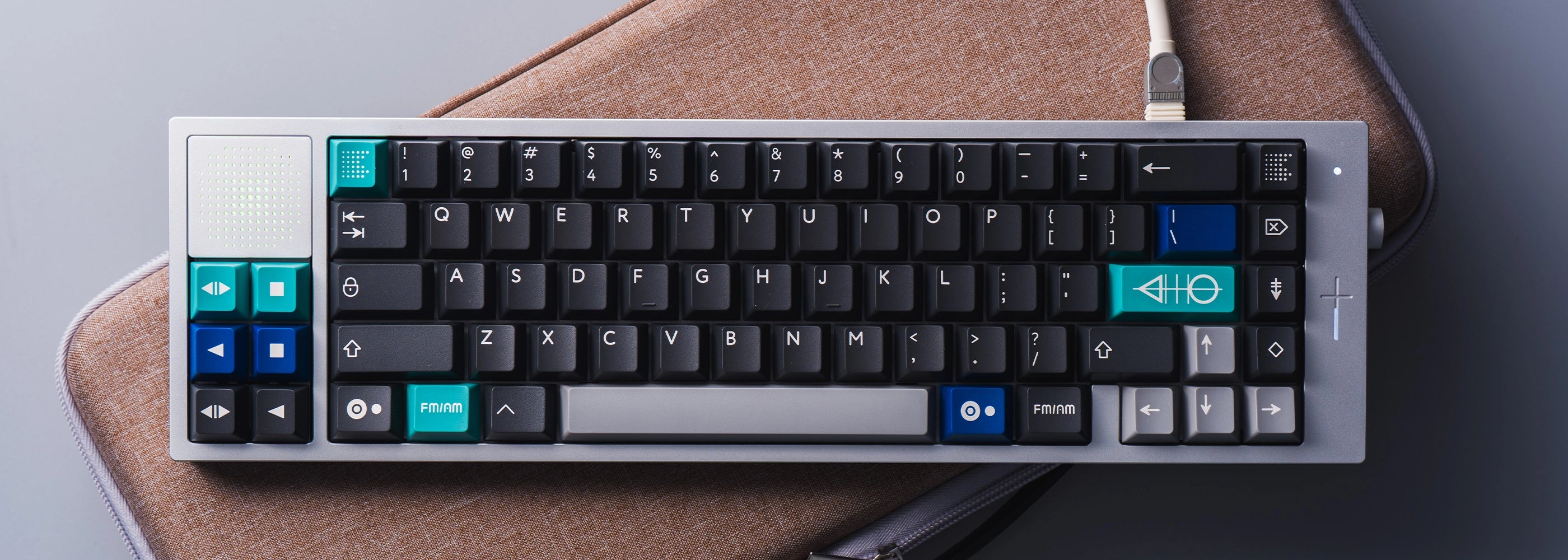

Sonic170 V2

The original SONIC170 was run in 2023 with great success.

Three years later, SONIC170 V2 represents the definitive evolution and final group buy of this beloved platform.

We've refined the mounting system, acoustics, and overall typing feel with substantial engineering improvements. Discover what's new below.

General Specs

• Layout: 10% Macro + 65%
• Mounting: Leaf-spring gasket
• Typing Angle: 7°
• Front Height: 17.7mm
• EKH: 22.4mm
• Dimensions: 371 × 107.8 × 30.7mm
• Material: Aluminum / Brass
• Weight: 1.6kg (kit) / approx. 2.1kg built

PCB & Layout

• Main PCB: 1.6mm hot-swap (fixed layout) or 1.6mm soldered (multi-layout)
• Hot-swap: Supports fixed layout and stepped Caps Lock
• Solder: Supports 7U spacebar and ISO enter
• Macro Section: Hot-swap only for easy lighting module installation

Kit Includes

• Shell (6063 aluminum top and bottom / brass weight / brass mid-frame)
• Wired 1.6mm PCB (QMK with VIA support)
• Plate (color-matched aluminum; e-white version with silver plate)
• Foam kit (3mm Poron case foam / 0.5mm IXPE switch pad)
• Gasket (Three different hardness levels)
• Screws and feet
• Manual
• Full PCBA set (Type-C daughterboard / adapter / knob / light / macro / magnetic connector boards)
• Keyboard case & Packaging box
