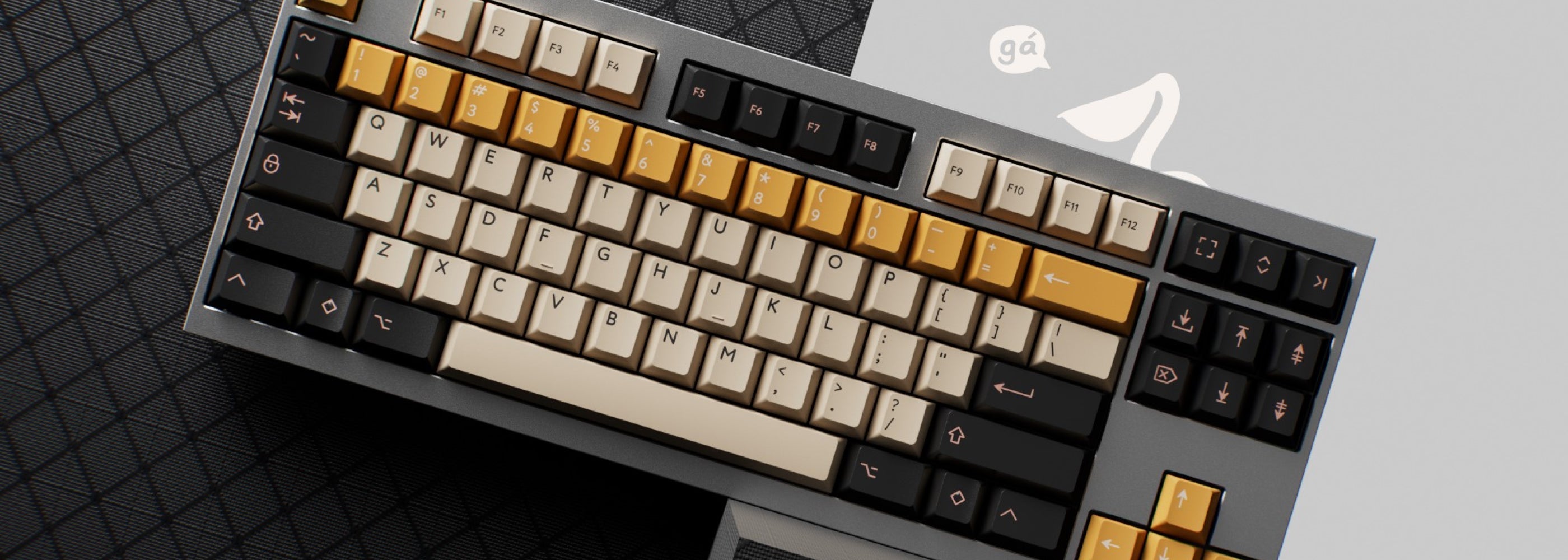

Tofu TKL

Tofu TKL

Mounting Styles

PCB Gasket Mount

The PCB Gasket is designed to provide a maximally soft, bouncy, and flexible typing experience. Combine this mount with the solderable PCB to assemble your board without a plate.

Top Mount

To minimize resonance and hollowness, the mounting points for the TOP structure are strategically placed to avoid the spacebar area. This results in a more uniform and satisfying sound signature.

PCb Options

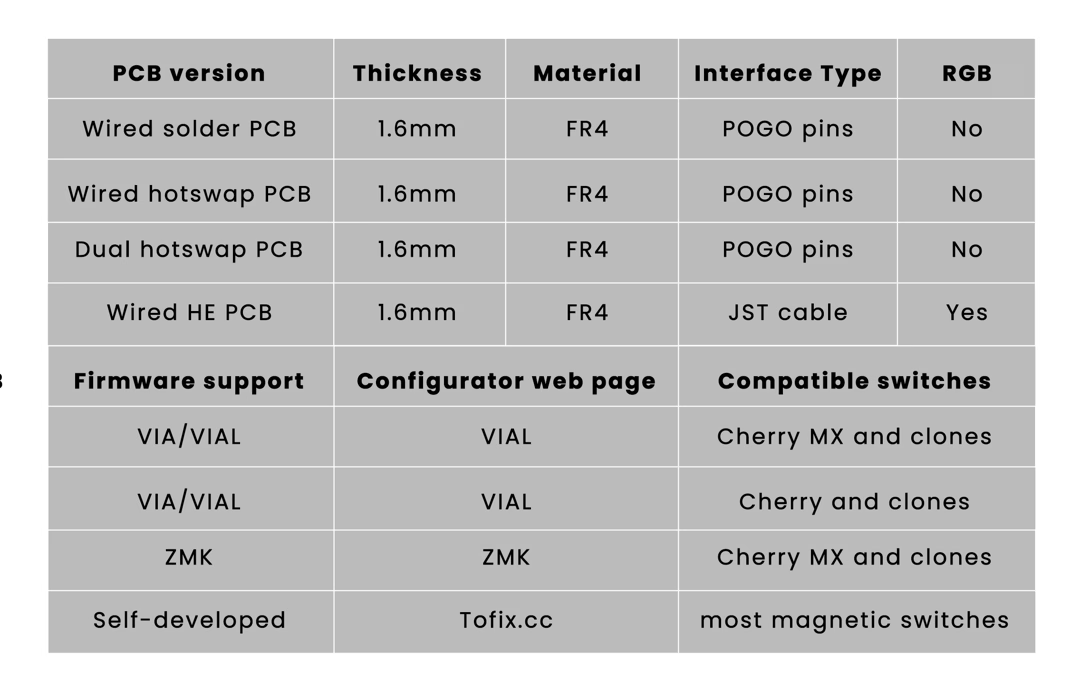

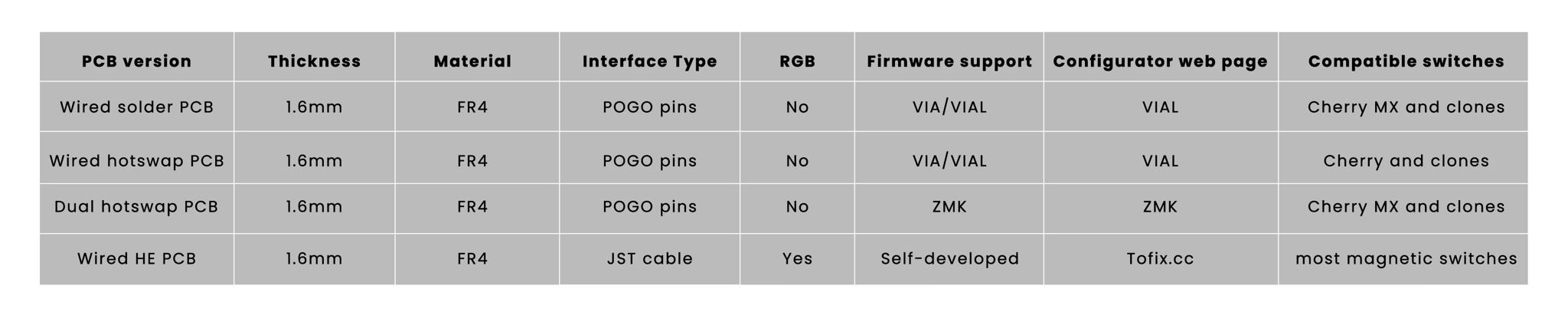

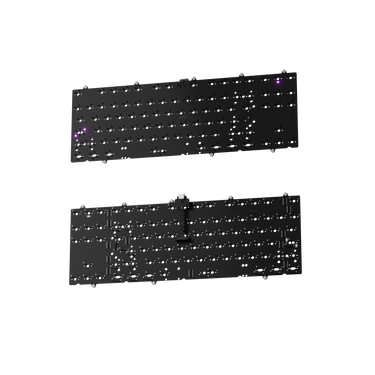

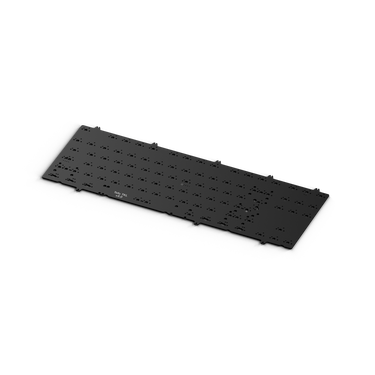

Wired PCB (Solder & Hotswap)

Dive into deep customization with support for AVAVIAL, and VIA. The solder version also allows for a unique plateless build option.

  • 1.6mm thickness
  • FR4 material
  • Solder version/ Hotswap version
  • Magnetic connector PCB
  • Firmware
  • JSON file

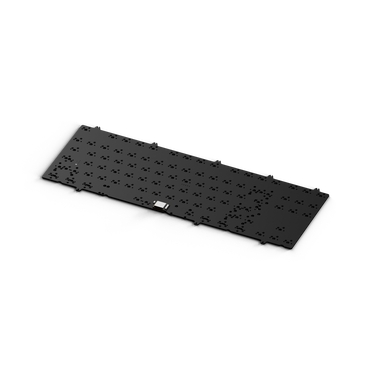

Duo Mode PCB

Experience the freedom of wireless with our first-ever dual-mode board powered by ZMK. Its ultra-low power consumption delivers an incredible 6+ months of battery life from a single 1000mAh battery.

  • 1.6mm thickness
  • FR4 material
  • Solder version/ Hotswap version
  • Magnetic connector PCB
  • Firmware
  • JSON file

HE (Magnetic) PCB

Engineered for victory. We've partnered with NNKS to create a next-gen Hall Effect PCB focused on what matters most: ultra-low latency.

  • New Daisy-Chain Architecture: Reduces input delay.
  • Stable 0.01mm Resolution: Precision where it counts.
  • Web-Based Configurator: Easy, on-the-fly adjustments.
  • Continuous Firmware Updates: Always stay ahead of the curve.

Dmensions

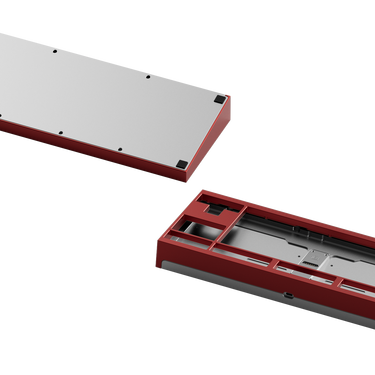

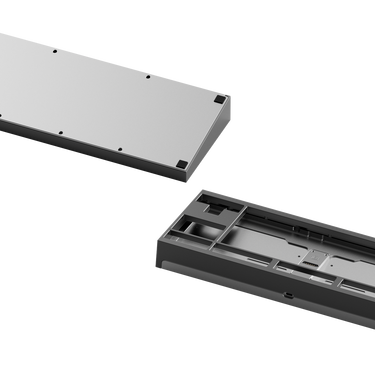

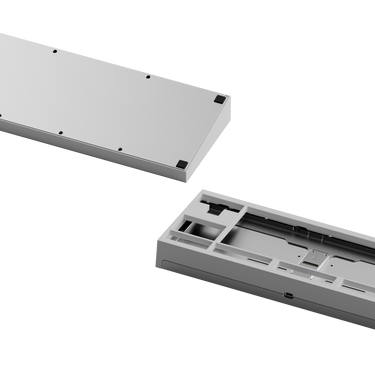

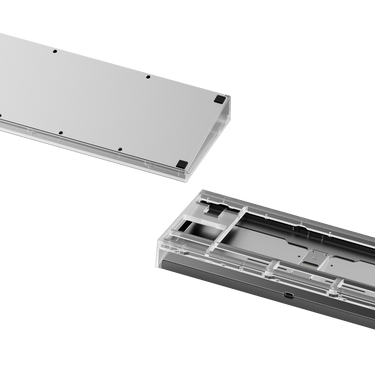

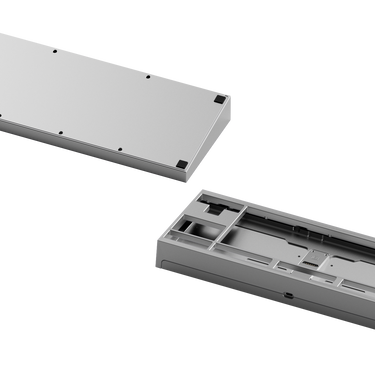

  • Case material: Aluminum (anodized/e-coating)
  • Mounting style: Top Mount/PCB Silicone Gasket
  • PCB: 1.6mm, 4 options, solder/wired hotswap/Dual-mode hotswap/HE

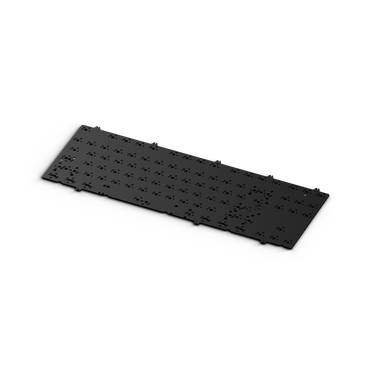

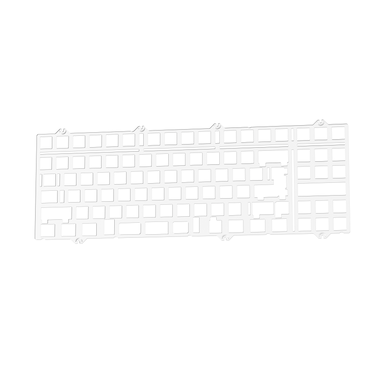

  • Plate: Alu/Carbon fiber/PC Plate
  • Typing angle: 9 degree

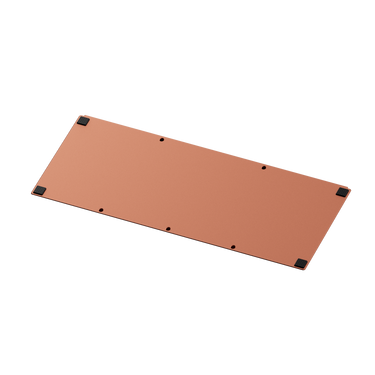

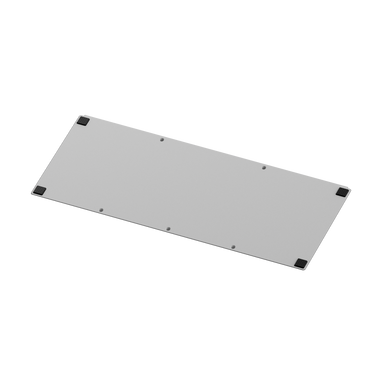

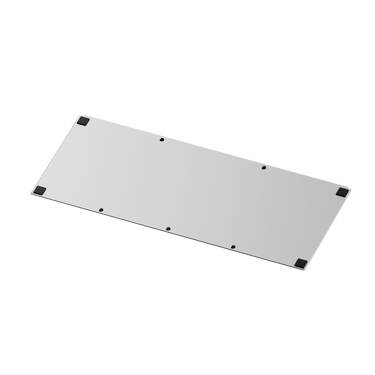

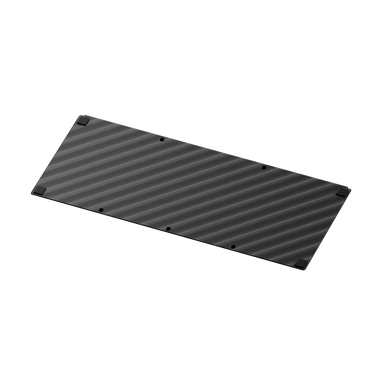

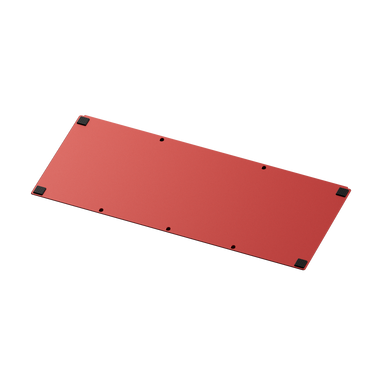

  • Cover plate material options: Stainless Steel / Brass
  • Weight: up to 4.9kg after built
  • Designer: Wei
