Venom TKL HE RGB PCB

Designed to the Hiney H87C/H87NU standard size used across the custom keyboard community, this PCB provides the essential components for building your keyboard. Whether you're putting together your first custom build or upgrading an existing setup, follow the recommended assembly steps to ensure everything fits and functions correctly.

Layouts

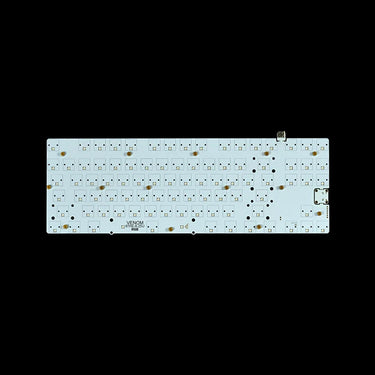

• Venom H87HERGB 6.25U
• Venom H87HERGB 7U

Before Assembly

• Test the PCB and verify that every key functions correctly before installation.
• Remove the yellow tape from the PCB stand-offs before installing the screws.
• Foam is optional. If using a foam set, trim the spacebar section to match your keyboard layout.

PCB & Plate Assembly

• Use all 14 screws when securing the PCB and plate together.
• Once the C-type port has been removed, it cannot be reinstalled. Handle it carefully during assembly.
• Remove the daughterboard from the PCB before use, as electrical current may flow through the board.

Important Handling Instructions

• The daughterboard and C-type ports are made from FR-4 material and require a nipper for removal.
• Do not use scissors or unsuitable cutting tools, as they may damage the components.

Please Note: Take care during every stage of assembly. Testing the PCB beforehand and following the recommended installation process will help prevent damage and ensure a successful build.

Images Courtesy of Geonworks.
