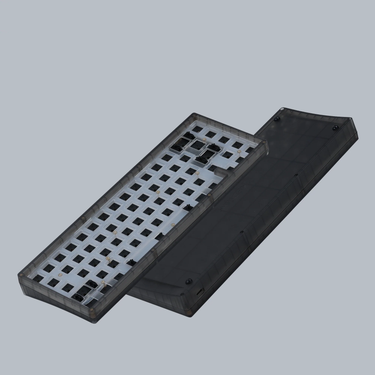

KBD67 LITE R4 MECHANICAL KEYBOARD DIY KIT

Color

Click here to customize your keyboard! 💕😉

Cases

Completely optional. These cases are add-ons to help you reach the color you desire. We help to build your board with this new case if purchased with Assembly service.

Assembly

Meticulously assembled by hand, our services ensure you get the best bang for your buck. Should you choose None, we will just be assisting to ship the items directly.

Keycaps

Choose from our curated collection of keycaps, the one you fancy. PO indicates pre-order.

Linear

Smooth, consistent performance across your keystroke.

Tactile

Feel a tactile bump on each keystroke.

Silent Switches

Silence is golden

Switch Lubrication

We lubricate your switches by hand, with only the best materials and process. No compromises.

This item extends your order date by about 1 to 2 weeks as we slot your order for lubrication. We aim to finish faster. But this is a safe window for us.

Stabilizers

Improve performance across modifier keys (Spacebar, Enter etc). This is optional as there are already stabilizers in the kit!

Please do not select 7U only options for this board as it is not supported!

Modifications

These are the modifications offered by us. To find out more, click on the link below.

Find out more about our modifications

General maintenance and others

The KBD67 Lite line of keyboards needs no introduction as a hallmark as a greatly priced deep-sounding, budget-friendly keyboard.

R4 marks the last and final run of these awesomely positioned keyboard kits.

We are opening a pre-order for these keyboards to help offer this as an option for our community.

Status: Instock

SPECS

  • Top and Bottom ABS plastic case
  • Mute silicone
  • Cherry screw-in stabilizers 60 set
  • Wired version supports VIA;
  • Bluetooth version supports TMK firmware, it already supports the VIA tool. Before using VIA, you need to replace the old file with a new bin file and load the Json file from VIA.YD67BLE.BIN   YD67BLE_json_via.json
  • Wired version supports Per-key RGB and Hot-swap; Bluetooth version does not support RGB effects
  • Injection molding polycarbonate plate (No necessary to add stand-offs)
  • USB-C supports MAC, Windows, Linux, etc.
  • Compatible with MX and MX clone switches
  • KBD67 Lite Acceptable Quality Standards: Click  QC standard
  • Made in China
  • Typing angle: 6 degree
  • Designed by KBDfans

Include

  • PCB x1
  • Case x1
  • Plate x1
  • Stabilizers 60 set x1
  • Mute silicone x1
  • Bottom foam x1
  • USB-C cable x1
  • KBD67 Lite Carrying case x1
  • KBDfans stabilizers foam stickers set x1
  • Rubber feet and Screws

Wired PCB Specs

  • KBD67 MarK II Hot-swap PCB/ KBD67 MarK II RGB-ISO PCB
  • Fixed layout
  • Support Per-key RGB
  • Based on QMK
  • Support VIA
  • Kailh hot-swap sockets

Wired PCB Flash Manual
