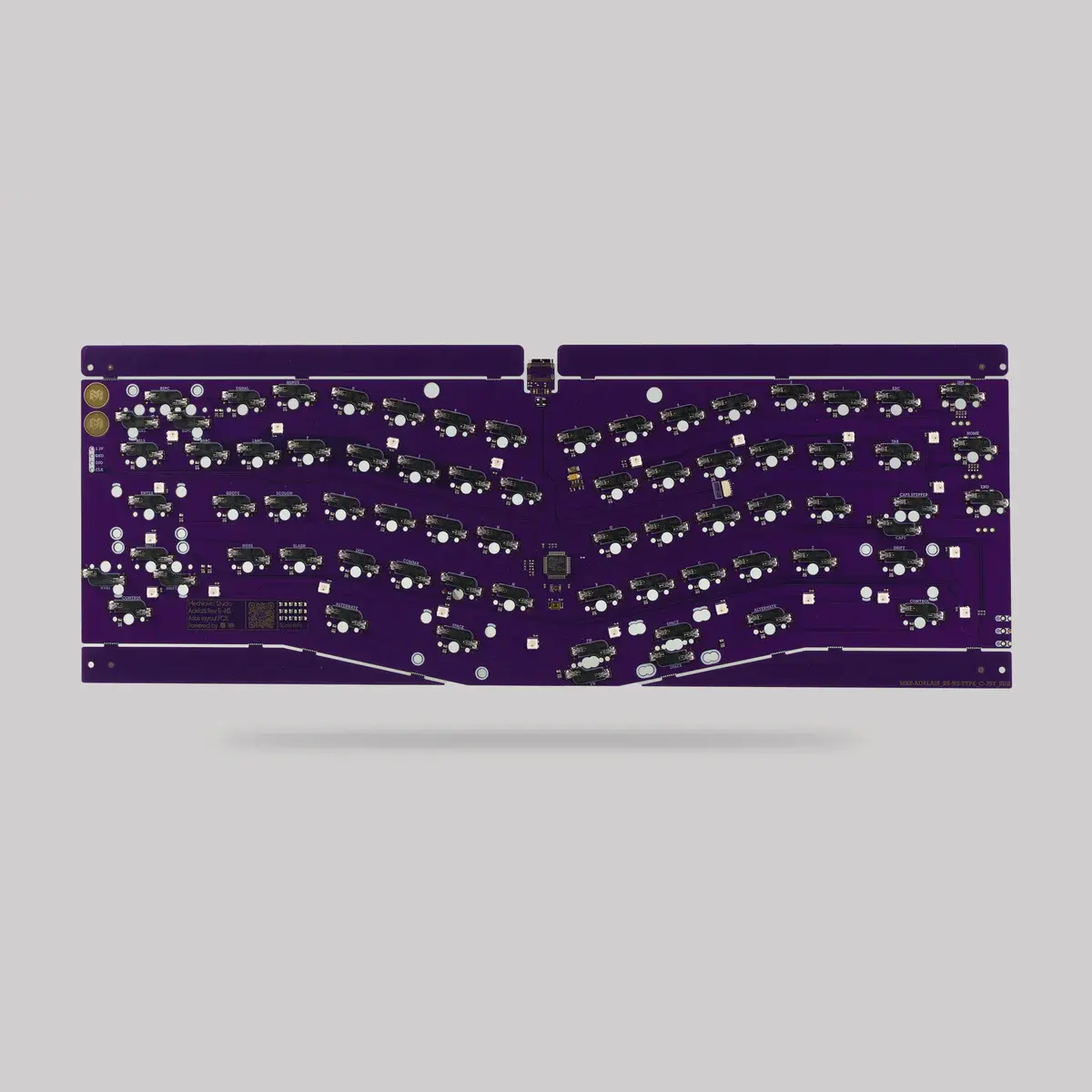

Mechlovin' Adelais (Alice layout) PCB

$76.00 SGD Sold out
Shipping calculated at checkout.
Variant: Purple (Type-C / Solder)

Pickup currently unavailable at Yu Li Industrial Building

Description

  • Supported layout
  • Resource page
  • Compatible with Alice-style boards that use a centered USB-C or Mini-USB connector (please note that certain boards like TGR Alice and Nunu only take Mini-USB PCB)
  • Compatible with Alice-layout boards that use daughterboard via low-profile JST-SUR connector without having to worry about bottom case fitment (since the JST-SUR connector is very thin at 1.75 mm). We will include a JST-SUR to JST-SH cable for each PCB with the SUR connector option so you can use it with standard JST-SH daughterboards.
  • Powered by ARM STM MCU
  • Programmable via QMK and VIA
  • Underglow RGB
  • Rotary encoder support (on all three top-left cluster keys)
  • USB Type-C (Top-sided), Mini-USB or JST-SUR
  • PCB thickness: 1.6m
  • ESD protection
  • PCB color: White / Purple
  • Immersion gold finish
