Mechlovin' Infinity 87.5 (87 & 88 Hybrid Layout) PCB

$78.00 SGD
Shipping calculated at checkout.
PCB: [FR4] Infinity 87.5 Rev 2.2

Pickup available at Yu Li Industrial Building

Usually ready in 24 hours

COMPATIBILITY

  • The Infinity 87.5 is in the popular A87 form factor with Top-sided USB Type-C or Mini-USB and supports BOTH the F12 and F13 footprints, so it’s compatible with a number of TKL boards like Geonworks Frog/F1-8x; KFE-CE; Singa Jaguar, TGR Janes among many others.

  • JST header soldered on "standard position".

TECH SPECS

  • Powered by STM32
  • Programmable via QMK and VIA
  • Underglow RGB (FR4 only)
  • PCB thickness: 1.6mm
  • USB Connector: Type-C or Mini-USB
  • Support JST for use with daughterboard
  • ESD protection
  • PCB colour: White (FR4), Green (CEM3)
  • Immersion gold finish
  • Supported layout

NOTES:

  • Infinity 87.5 Rev 2.2 is FR4 and HAS underglow RGB

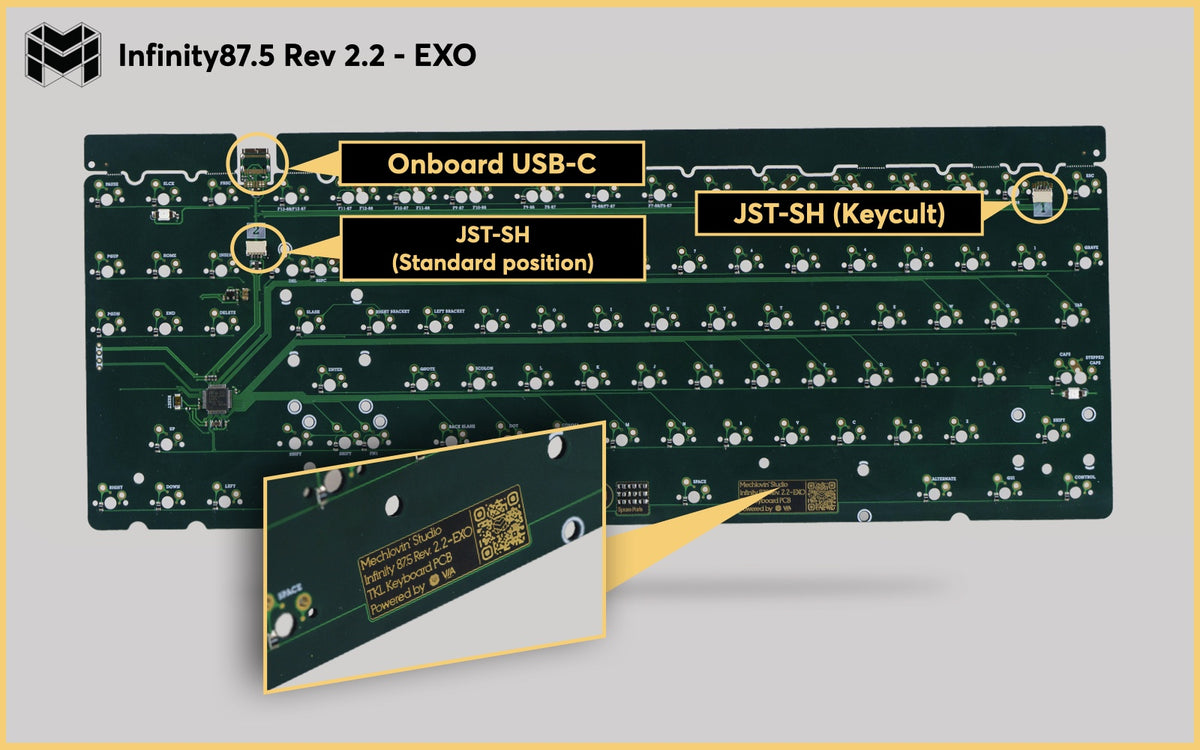

  • Infinity 87.5 Rev 2.2-EXO is CEM3 - no ground plane, and DO NOT have underglow RGB
  • All PCB in the current stock-in has on-board USB-C but supports connectivity via 4-pins JST-SH and daughterboard
  • Supports 7U only
  • PCBs do not come with daughterboard and JST cable
