Mill-Max Socket Soldering Service

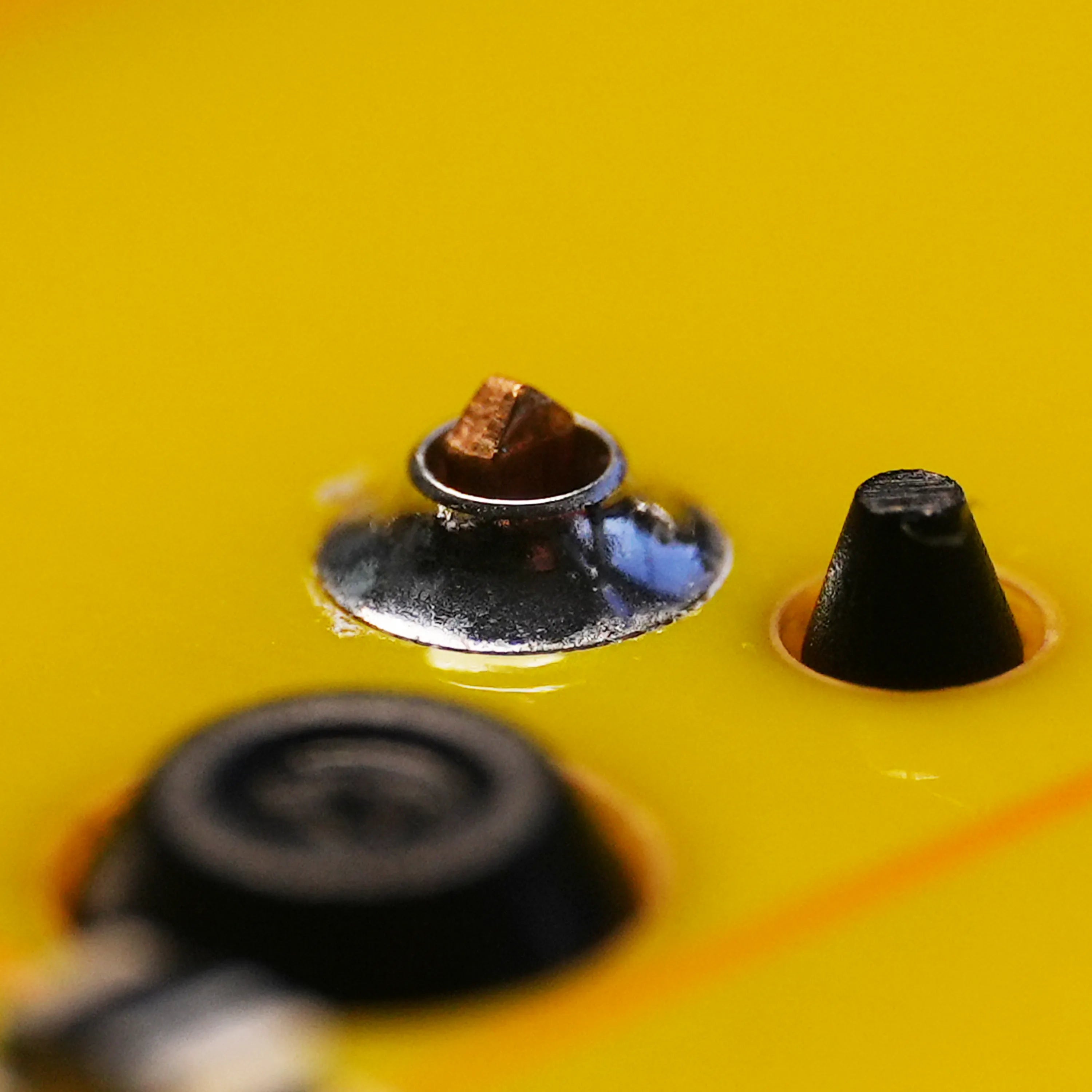

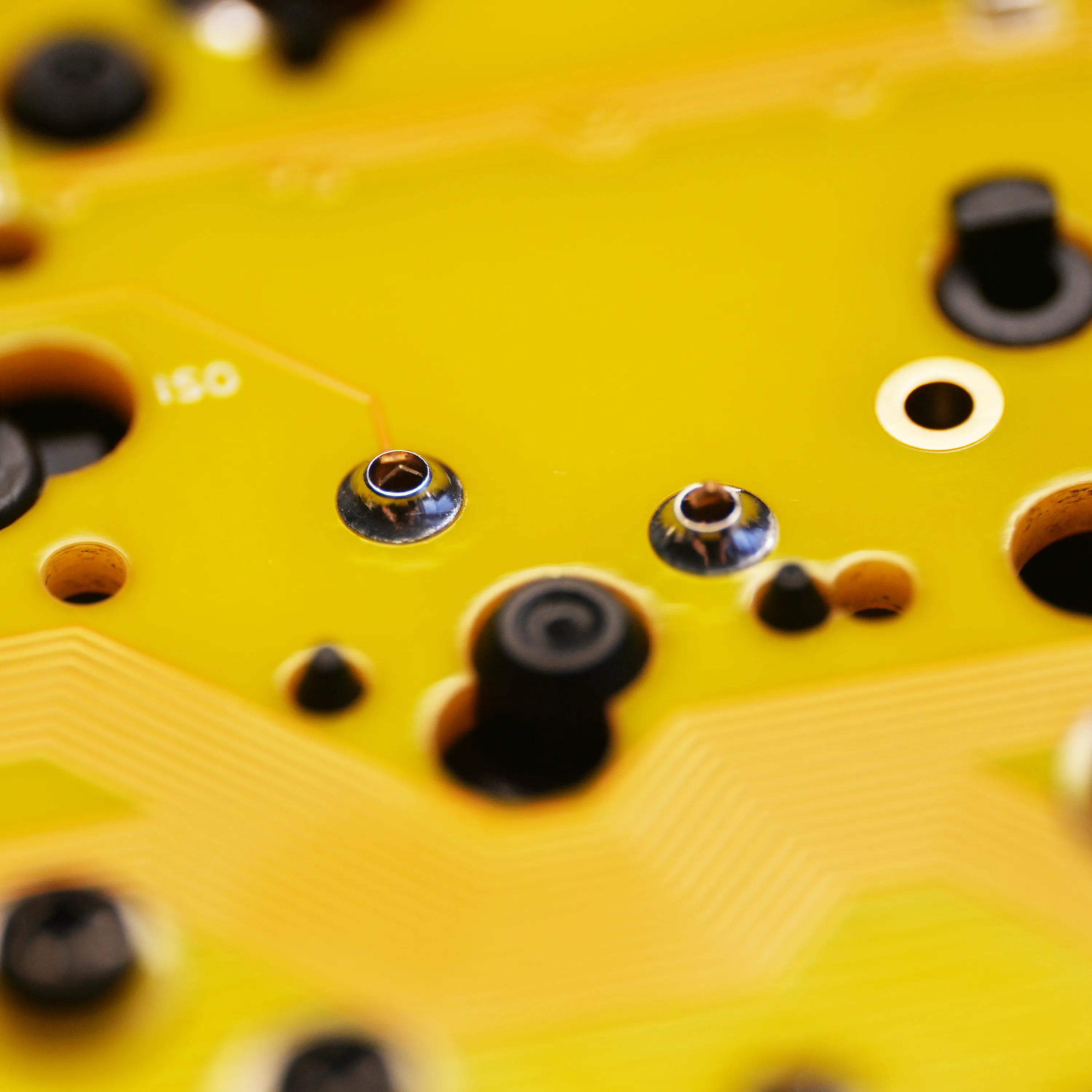

Our Mill-Max service upgrades your soldered PCB into a hot-swappable one using Mill-Max 3305 sockets, allowing you to easily swap switches without desoldering/ soldering.

Kindly note that the price of the milmax sockets are already factored into the price.

What’s Included:

• Mill-Max 3305 Sockets
• Soldering
• Sockets installed: 1 quantity = 1 switch socketed

Socket Specifications (Mill-Max 3305):

• Manufacturer: Mill-Max Manufacturing Corp.
• Type: Solder-Mount
• Overall Length: 0.105" (2.67mm)
• Accepts Pin Diameter: 0.025" ~ 0.037" (0.64mm ~ 0.94mm)
• Accepts Square Pin Size: 0.025" (0.64mm)
• Pin Hole Diameter: 0.051" (1.30mm)
• Mounting Hole Diameter: 0.060" (1.52mm)
• Flange Diameter: 0.077" (1.96mm)
• Contact Material: Beryllium Copper
• Contact Finish: Gold, 30.0µin (0.76µm)
• Operating Temp Range: -55°C to 125°C
• Datasheet: 3305-0-15-80-47-27-10-0 Datasheet
• Environmental Information: RoHS Cert

How It Works:
Step 1: Add the quantity of sockets needed to your cart (1 quantity = 1 switch)
Step 2: Email us or reply to your order confirmation email to arrange a time to drop off your PCB.
Step 3: We'll contact you once your board is ready for collection!

Disclaimer:
Please note that modifying your PCB will void its original warranty. Proceed only if you are aware of and accept this risk.

⚠️ Important:
We do not recommend this service for O-ring mounted boards or plateless keyboard builds due to compatibility and reliability concerns.
