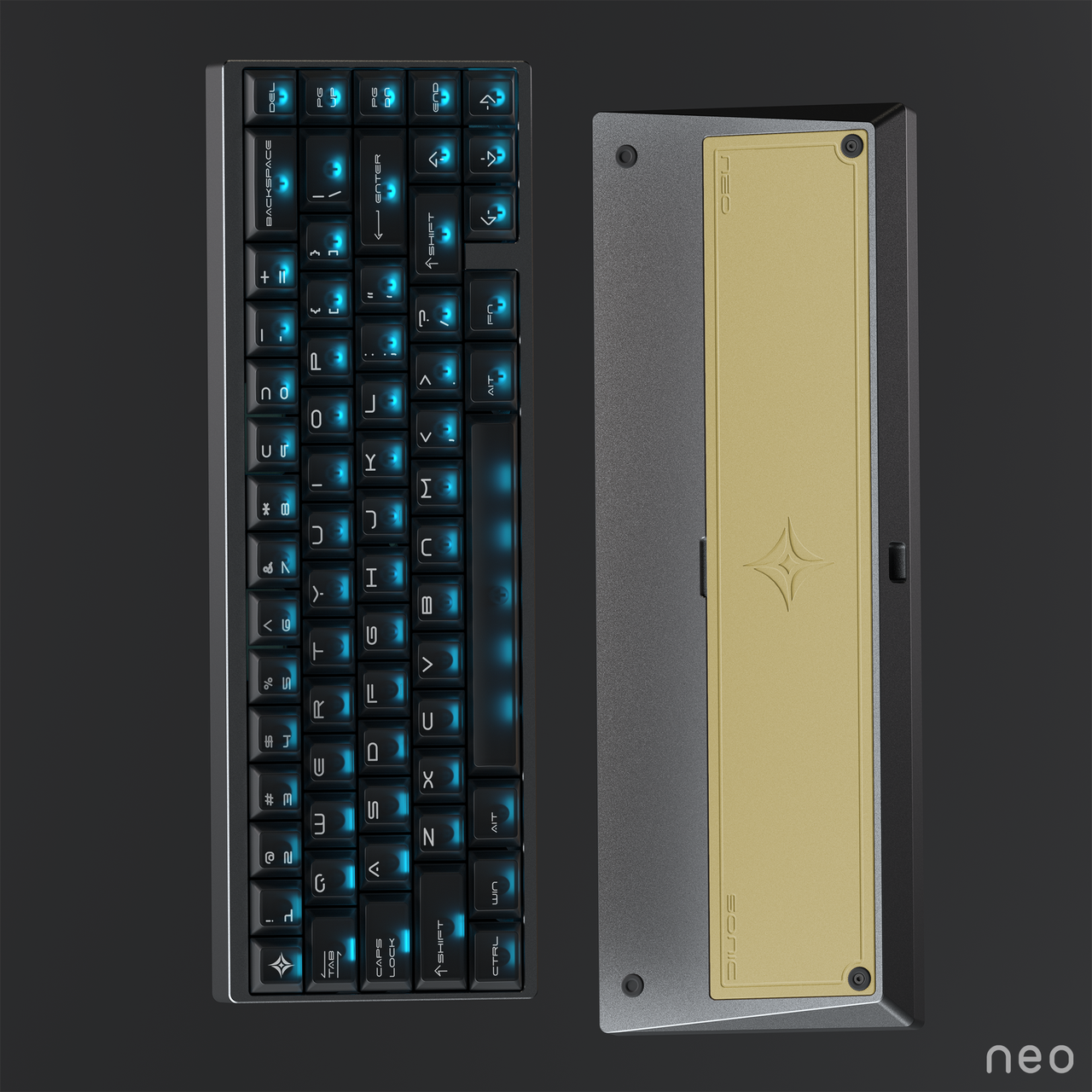

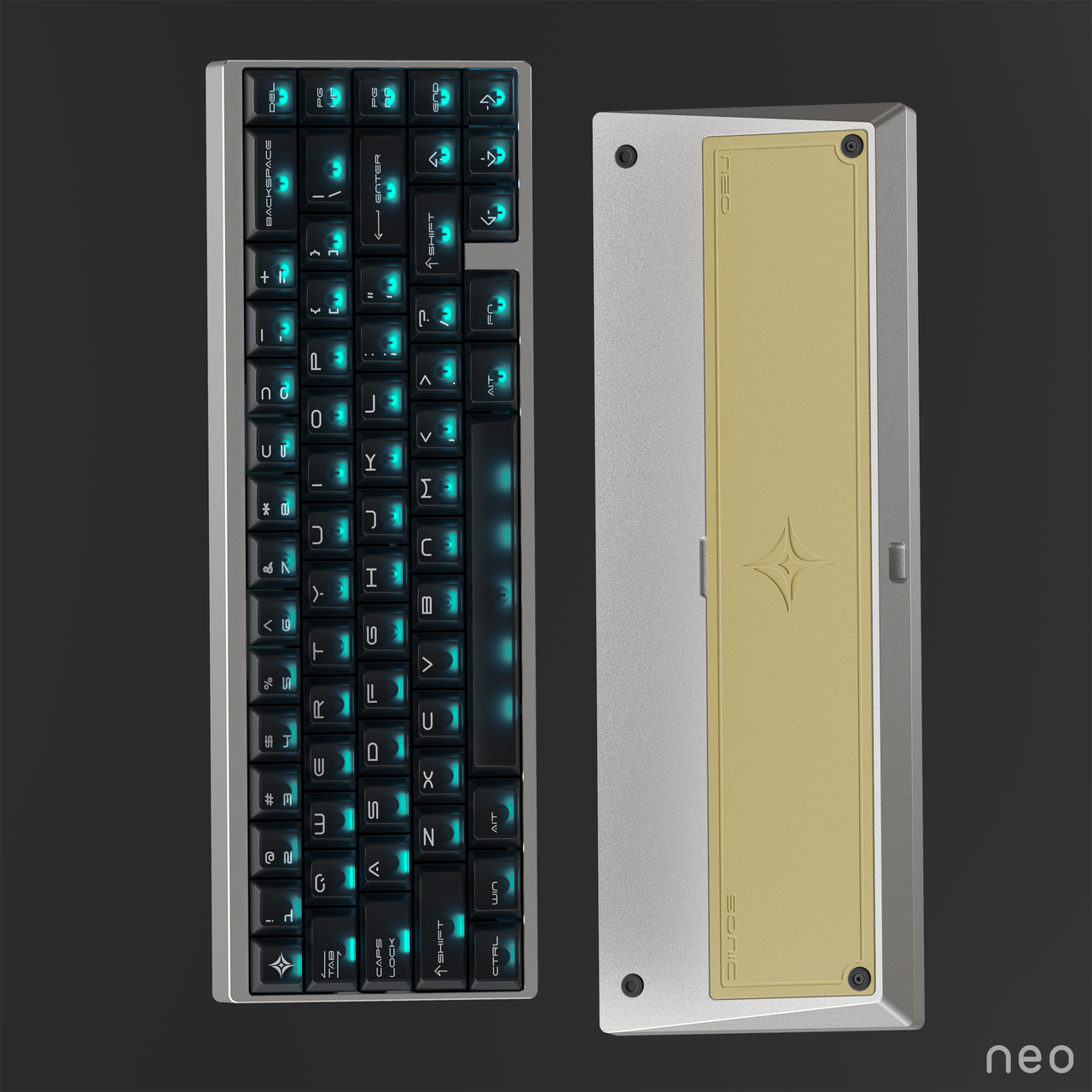

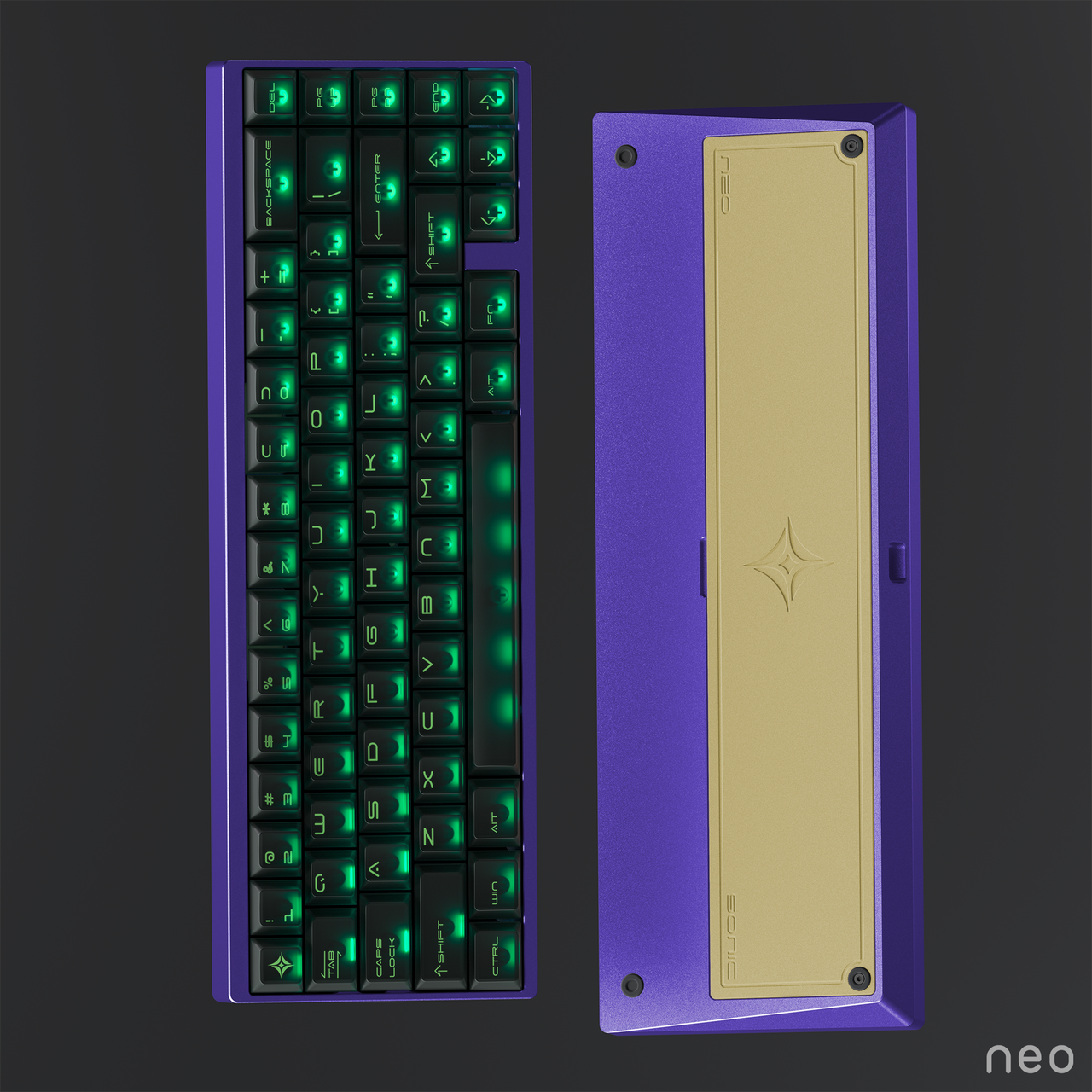

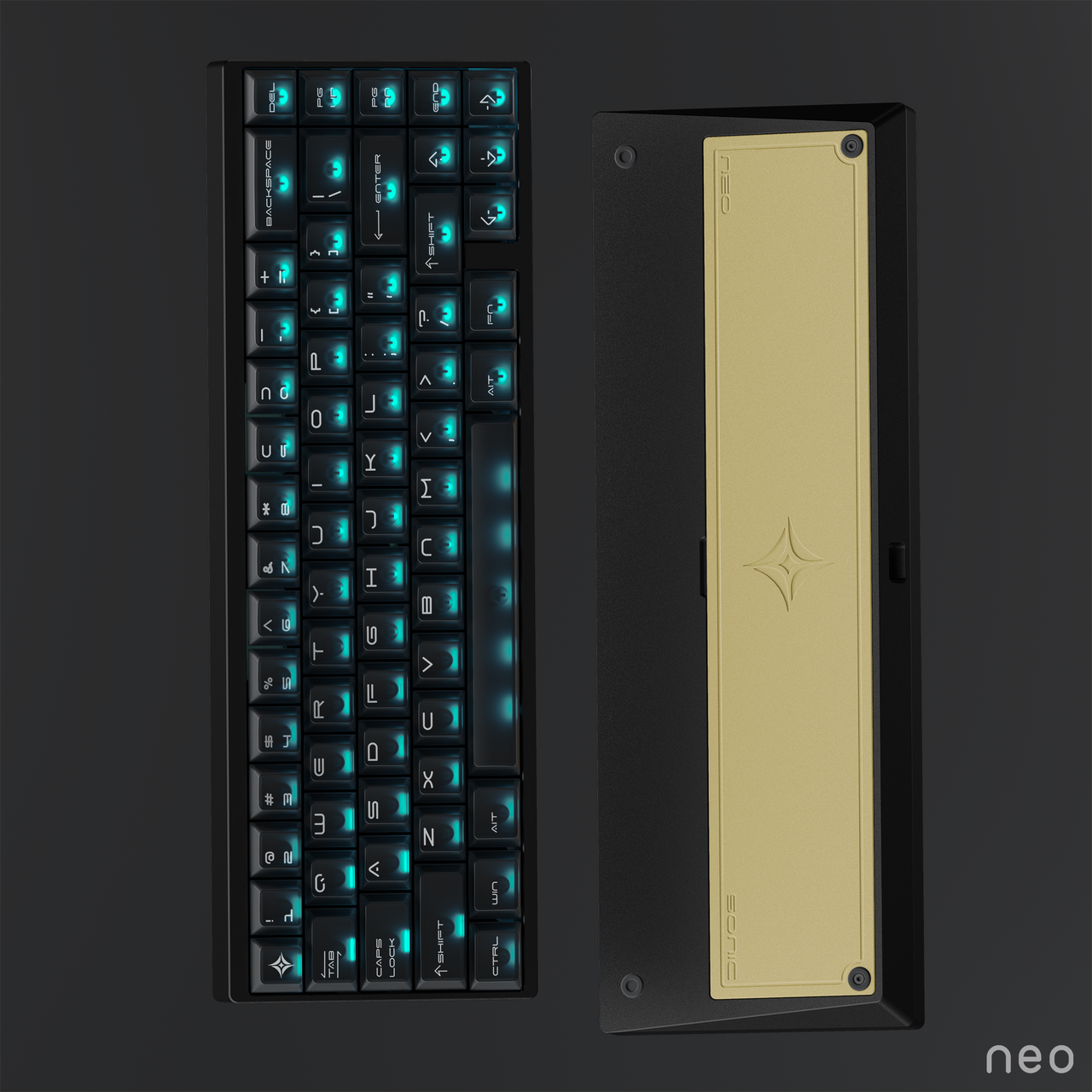

Neo65 Sonic HE+ Keyboard Kit
Pickup available at Yu Li Industrial Building
Usually ready in 24 hours
Neo65 Sonic He+ is Neo's flagship of their magnetic switch series and is fully assembled.
Featuring Neo's proprietary magnetic switch solution, this plug-and-play custom HE keyboard delivers premium performance at an industry-leading price point, offering exceptional value right out of the box.
Note:
- On the Anodized Purple and Anodized Green keycaps, the legends are green; on all other colors, the legends are white.
- Oxidation of brass weights is unavoidable due to the characteristics of these materials. If you are concerned about this, please choose another keyboard 😅😅
- This is a wired only keyboard
- PCBs are QMK-based and support VIA.
- Web configurator
Specifications
Neo65 Sonic Hall Effect Keyboard Features:
Typing angle: 8 degree
Front height: 17mm
Size: 310.35mm * 107.8mm
PCB: 1.6mm Wired ANSI Hotswap Non-flex cut HE PCB
What's in the box
1. Keyboard Carrying Case x1
2. 8K USB Cable x1
3. Neo65 Sonic Keyboard x1
- including switches, keycaps, stabilizers, plates and PCB pre-assembled
4. Spare Owlab Nova Magnetic Switch x4
5. Classic Neo Keycap & Switch Puller x1
6. Quick Start Guide x1
7. Warranty Card x1
8. Upgraded Keycap & Switch Puller x1
9. Plate Puller x1
Group Buy details
Estimated Date of Arrival:Q1 2026
Group Buy Ends:September 19, 2025
Group Buy & Pre-Order Policy
Please note: Do not add in-stock items to your cart with this product.
For more information, please read our Group Buy and Pre-Order Policy here.
Optimized Gasket Structure
The silicone gasket absorbs impact for a smoother, fatigue-free feel during intense gaming.
By isolating the PCB from the case, it significantly reduces the negative typing sounds common in regular hall effect keyboards.
With mounting points positioned directly on the PCB, the effect on actuation accuracy caused by gasket rebound is minimized to the lowest level.
This delivers a superior user experience alongside stable performance for your intensive gaming sessions.
Material and Weight
At around 1.5 kg, this behemoth ranks among the heaviest magnetic keyboards in its price, engineered to resist shaking, shifting, and deformation.
Milled from CNC aluminum and fortified with both external and internal stainless steel weights, the Neo65 Sonic delivers exceptional stability—anchoring every keystroke.
OwLab's New Nova Switch
Nova switches feature a box-styled stem for minimal travel deviation,PG-3 materialand magnet bottom-out stems for thocky acoustics, and extended 20 mm springs for a snappy, bouncy return.
The satisfying bottom-out sound provides clear, distinct feedback – whether you are performing rapid maneuvers or in marathon typing sessions when deadlines loom.
Carbon Fiber Plate
Flat and rigid carbon fiber shims out PCB warp when fastened with our customized stand-offs, ensuring every key feels identical, even after long sessions of competitions.
Consistent feedback boosts confidence in every tap.
Sounds really good
Skipping soft PE sheets, the built-in0.05 mm PET pad stops wobble and sharpens acoustic feedback, making each keystroke crisp and lively.
We also layered precision-cut plate foamand 2-layer case foam with tailored cutouts to silence unwanted hollowness without compromising sensor integrity or cooling.
Proprietary Web Configurator
Achieve rock-solid stability at 0.01 mm sensitivity – eliminating false triggers and missed inputs that can cost you the game. The advanced 8kHz polling rate combined with custom Hall Effect sensors and high-frequency MCU delivers lightning-fast 0.125ms response time, ensuring every keystroke registers the instant you intend it.
The integrated web configurator empowers you to fine-tune actuation points and dead zones for every individual key, unlocking professional features including SOCD, Rapid Trigger, and Dynamic Keystroke. Switch effortlessly between work and gaming profiles with one-key activation – optimizing your setup for any scenario.
8000HZ
Polling rate
0.125ms
Latency
0.01mm
Sensitivity
Adjustable Actuation Point
"Your Speed, Your Rules”
Set your Actuation Point based on your preferred response speed. When set at 0.1mm, the key will instantly activate when you press it. When set at 4mm, the key needs to be fully pressed down before it's activated.
Rapid Trigger
“Keys dance at your touch”
Rapid Trigger dynamically adjusts actuation and deactivation points, activating keys the moment you press and deactivating them as soon as you release—no need to fully lift and press again as with traditional mechanical keyboards.
Rappy Snappy
Rappy Snappy monitors at least 2 selected keys and activates the key pressed the furthest.
When combined with Rapid Trigger, it'll compare the keys only when in an active state. Allowing pre-pressing and faster activation on opposite key release.
Synamic Keystroke
4 different actions on a single key based on key position. Activate 1 up to 4 bindings on 4 different parts of the key press.The key response distance can be adjusted as needed to provide greater flexibility and customisation.
