KBDFans
Onibi [Add-ons]
Specifications
- 40% Layout + Half Num-row
Supports:
2.25U Enter or Split EnterLeft or Right Spacebar Position, Split Spacebar - Mounting Style: Top Mount with Silicone Shims
- Case Material: Aluminum 6063
- PCB:
Designed by ZoroadaSupports VIAL, QMK, VIASupports MX (1.6mm Thick), or EC (1.2mm Thick)Connectivity: Wired, Dual-mode, or Tri-modeDual-mode and Tri-mode will include two 1400mAh Battery - Plate: Standard FR4 (MX) or SS (EC)
Optional (sold separately): Aluminum, PC, Brass - Typing Angle: 7°
- Dimensions: 262 x 133 x 33mm
- Front Height: 18mm
- Assembled Weight: 1.4kg
- Available Colors:
Silver-Red, Red-Black, Gray-Black, Purple-Green, Black-Golden, Classic Beige, Why not pink
Keyboard Disclaimers
The photos
Photos and renders are for illustration. The product you receive may differ in colour, texture and finish because of lighting, screen settings and photography. Colour differences are not defects and are not grounds for an exchange or refund.
What's normal
A-stock units have no external scratches or obvious marks once built. Internal marks that can't be seen once built, including hook marks, don't make a unit B-stock.
Screw holes may not be fully anodised or coated, small marks near the hole openings may be present.
Raw or thinly coated brass oxidises and may develop a patina naturally. Small blemishes and discolouration may be visible.
Plating marks from the hanging holes used in production may show inside the case. They are normal.
Before you build
Please check your kit before you build it. Once a kit has been assembled, appearance issues can no longer be claimed.
Fees, cancellation windows and reporting times are in our Refund Policy.

HX40
HX40 is nspired by the famous portable computer called "EpsonHX-20".
The layout is in the reference of the original layout of HX-20 but shrunk down to a 40% but kept 6 number keys for user convenience.
The inclusion of the 6 num-row keys was done to help introduce more enthusiasts into the realm of 40% keyboards.

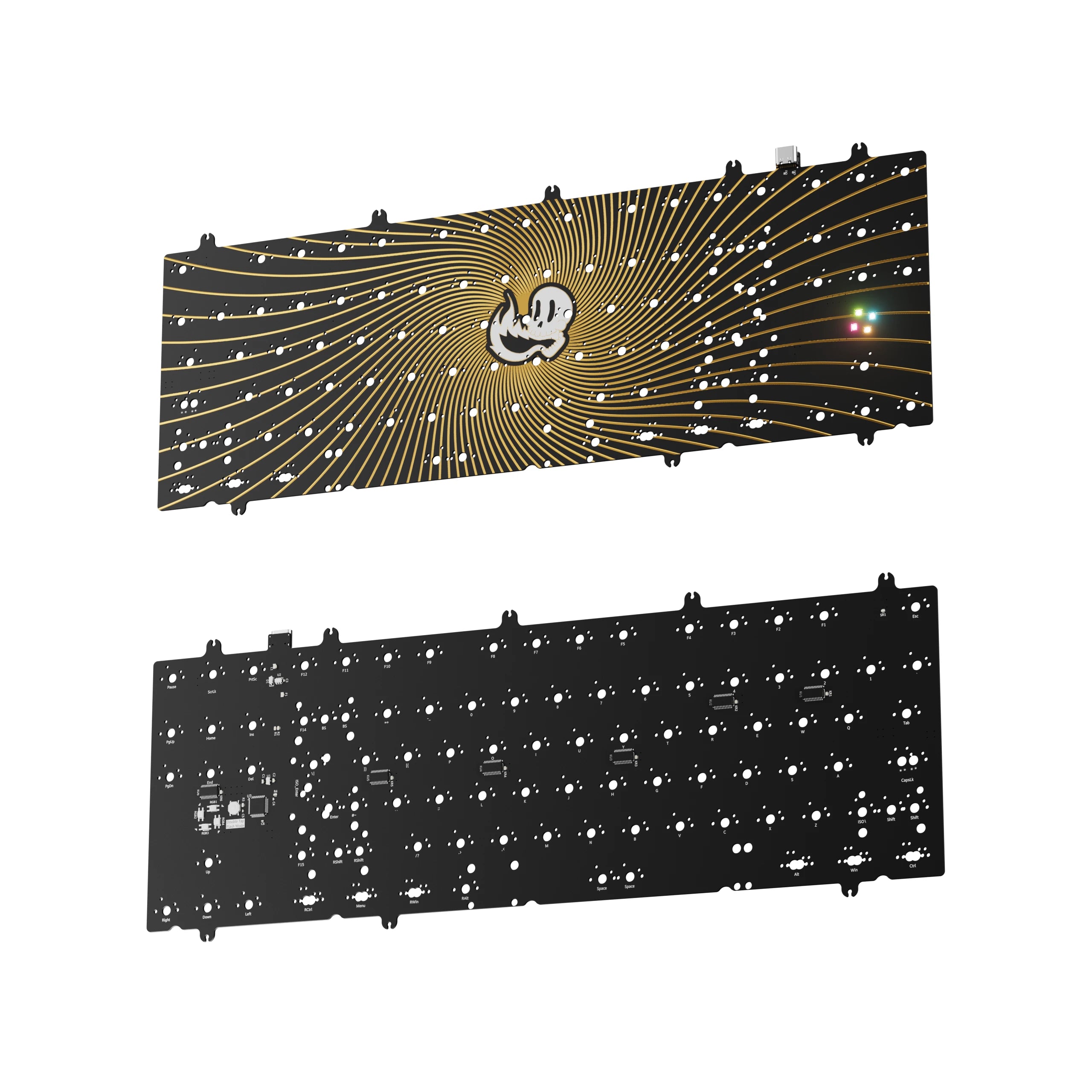

PCB Specifications
- PCB designer: Zoroada
- PCB Type: MX / EC
- PCB Thickness: MX 1.6mm / EC 1.2mm
- Layout Support: Stepped Capslock / Regular Capslock
- Connectivity: Wired, Dual-mode, Tri-mode
- Supports VIAL, QMK, VIA

40% + 7-Numrow
The HX-40 is a 40% but includes additional num-row keys (Esc + 6 Numbers) in order to increase the ease of use of the 40% layout.
