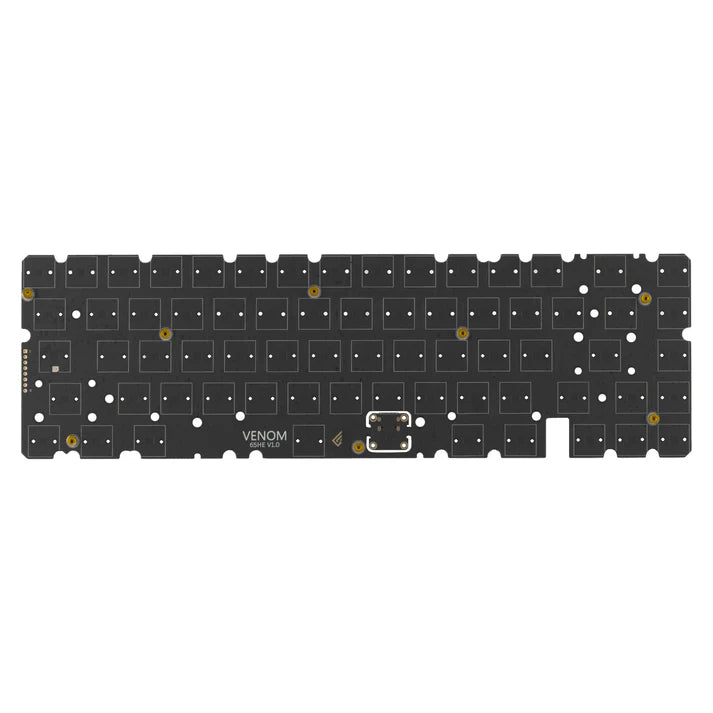

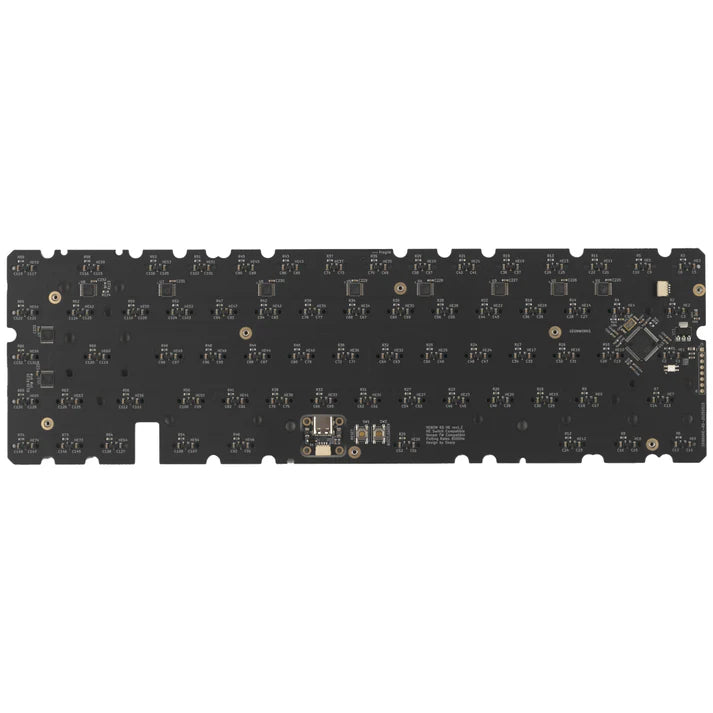

Venom65 6.25U HE PCB

Product Features

- Web-based firmware (https://venom.how/)
- RISC-V32 architecture applied
- Supports 8KHz polling rate / 14KHz scan rate per key
- 0.16ms latency
- Custom PCB standard specifications
- Daughterboard and JST connector included

Product Malfunction Check Points

- Use USB 2.0 high-speed or higher A TO C cable
- USB hub not recommended
- Use Chrome browser
- Initialize USB driver
- Firmware upgrade or factory reset

Compatible Switches

- RAPTOR HE
- RAW HE
- Lucifer HE
- GATERON KS-20 / KS-20T, etc.
- N-pole switch, 1600gs or less at bottom magnetic force

Compatible Stabilizers

- PCB mounted

Custom Keyboard Assembly Requirements

- VENOM HE PCB
- HE compatible reinforcement plate
- HE compatible switches
- Compatible housing
- PCB mounted Stabilizer

Specifications:

- Layout: 65% 6.25U Spacebar Only
- material: FR-4
- thickness: 1.6mm
- Polling Rate: 8KHz
- Scan Rate: 12KHz
- Latency: 0.15ms
- connection type: Unified Daughterboard

The included JST cable is 150 mm in length.
