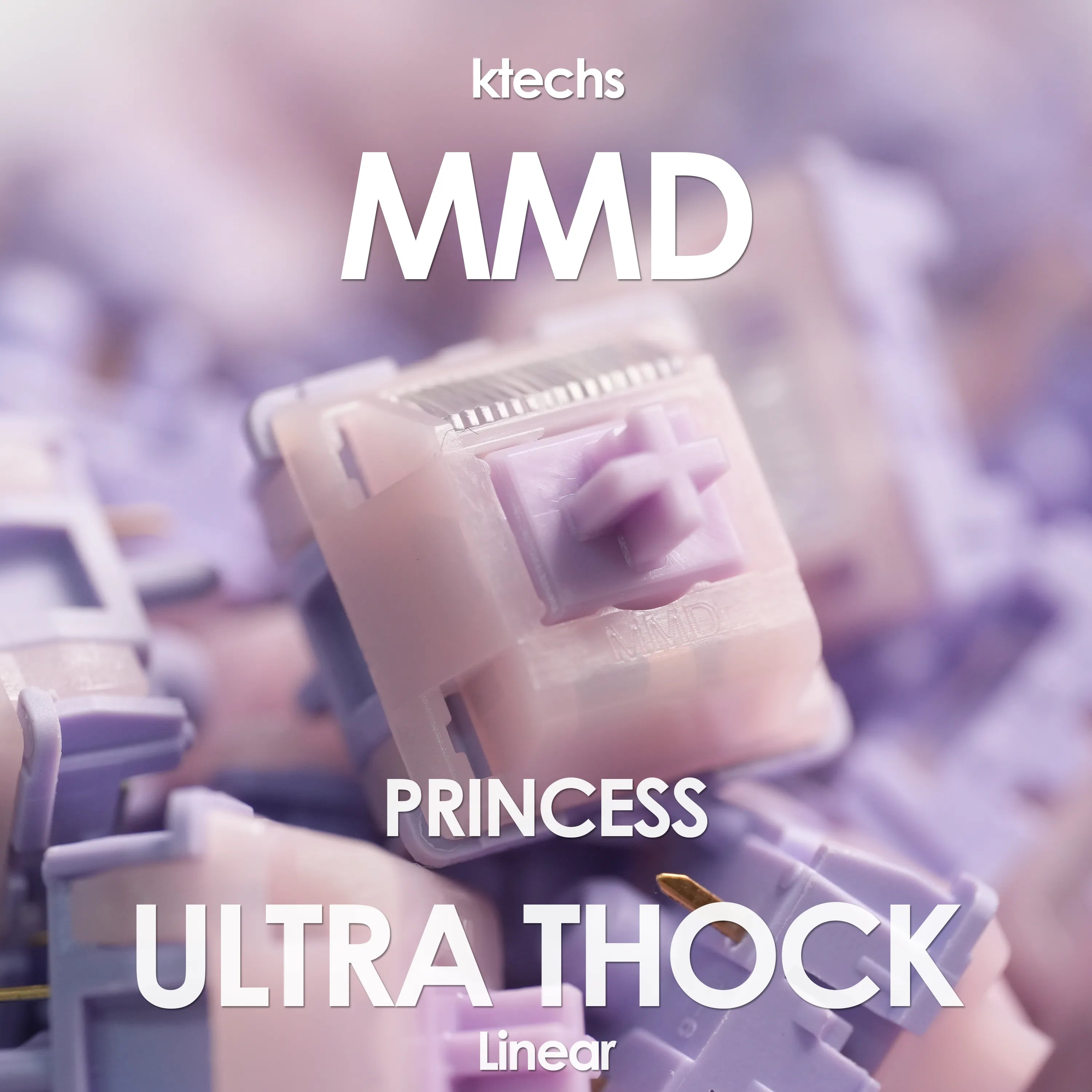

Princess Ultra Thock Linear Switches

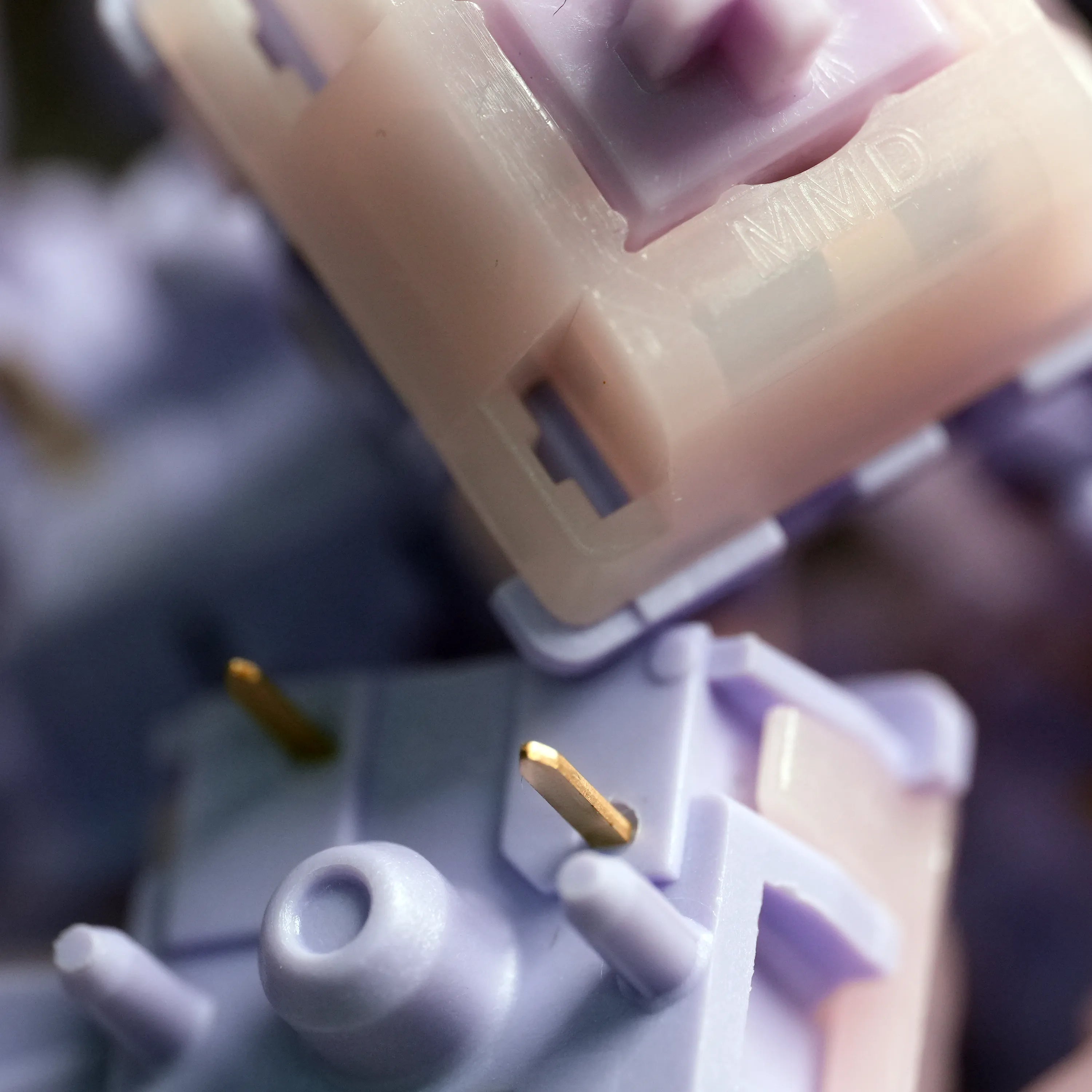

The MMD Princess Ultra Thock is a linear mechanical switch with PC top housing, PA66 bottom housing, and LY stem (standard). It features a 21.4mm extended spring. The 42g actuation occurs at 1.90mm. The 48g bottom-out occurs at 3.60mm. Extra: Light diffuser. Factory lubing? Yes! Manufactured by MMD.

Specification

Switch Type: Linear
Manufacturer: MMD
Stem material:  LY standard
Top Housing: PC
Bottom Housing: PA66
Operating Force: 42g
Bottom-out Force: 48g
Pre-travel: 2.0mm±0.2
Total Travel: 3.6mm±0.2
Spring: single-stage spring

Factory Lubed: Yes!

Switch style: MX Style Opening with 5 pin

Minimum Order Quantity: 10 switches

Any order below 10 switches will be canceled with a 4% cancellation fee.

Kindly note the following:

Switches are sold in 1 Qty = 1 Piece to offer more flexibility.
However, we recommend getting in 10 Piece denominations in the event of switch spoilage during modifications, etc.
By purchasing, you agree to our disclaimer for the purchase of mechanical switches.
