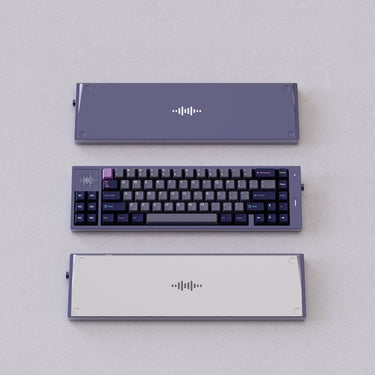

Sonic170 V2
Description
The original SONIC170 was run in 2023 with great success.
Three years later, SONIC170 V2 represents the definitive evolution and final group buy of this beloved platform.
We've refined the mounting system, acoustics, and overall typing feel with substantial engineering improvements. Discover what's new below.
Specifications
General Specs
• Layout: 10% Macro + 65%
• Mounting: Leaf-spring gasket
• Typing Angle: 7°
• Front Height: 17.7mm
• EKH: 22.4mm
• Dimensions: 371 × 107.8 × 30.7mm
• Material: Aluminum / Brass
• Weight: 1.6kg (kit) / approx. 2.1kg built
PCB & Layout
• Main PCB: 1.6mm hot-swap (fixed layout) or 1.6mm soldered (multi-layout)
• Hot-swap: Supports fixed layout and stepped Caps Lock
• Solder: Supports 7U spacebar and ISO enter
• Macro Section: Hot-swap only for easy lighting module installation
Kit Contents
Kit Includes
• Shell (6063 aluminum top and bottom / brass weight / brass mid-frame)
• Wired 1.6mm PCB (QMK with VIA support)
• Plate (color-matched aluminum; e-white version with silver plate)
• Foam kit (3mm Poron case foam / 0.5mm IXPE switch pad)
• Gasket (Three different hardness levels)
• Screws and feet
• Manual
• Full PCBA set (Type-C daughterboard / adapter / knob / light / macro / magnetic connector boards)
• Keyboard case & Packaging box
Keyboard Disclaimers
The photos
Photos and renders are for illustration. The product you receive may differ in colour, texture and finish because of lighting, screen settings and photography. Colour differences are not defects and are not grounds for an exchange or refund.
What's normal
A-stock units have no external scratches or obvious marks once built. Internal marks that can't be seen once built, including hook marks, don't make a unit B-stock.
Screw holes may not be fully anodised or coated, small marks near the hole openings may be present.
Raw or thinly coated brass oxidises and may develop a patina naturally. Small blemishes and discolouration may be visible.
Plating marks from the hanging holes used in production may show inside the case. They are normal.
Before you build
Please check your kit before you build it. Once a kit has been assembled, appearance issues can no longer be claimed.
Fees, cancellation windows and reporting times are in our Refund Policy.
